Reciprocating Saw Blades

2011/11/30

PRUNING 210



The sharply ground tri-edged saw teeth are designed for pruning trees with great efficiency while leaving smooth cut-off surfaces to minimize the healing period.

SPEC	Blade length	Pitch	TPI	Thickness
(mm)	210	3.00		0.90
(inch)	8.27	0.12	8	0.04
Surface Treatment
Electroless Ni-P plated

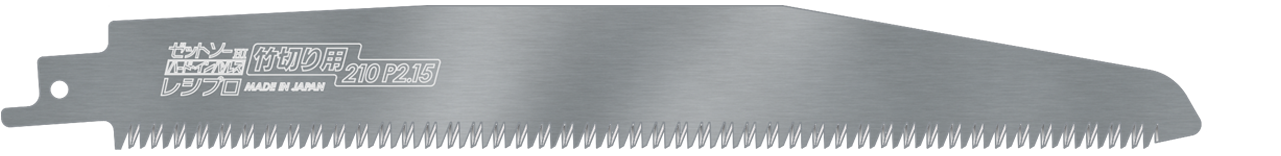

BAMBOO 210



A sturdier saw blade with precisely ground saw teeth, which is specially developed for harvesting bamboo, can smoothly cut bamboo without tearing the outer fibres.

SPEC	Blade length	Pitch	TPI	Thickness
(mm)	210	2.15		0.80
(inch)	8.27	0.08	12	0.03
Surface Treatment
Electroless Ni-P plated

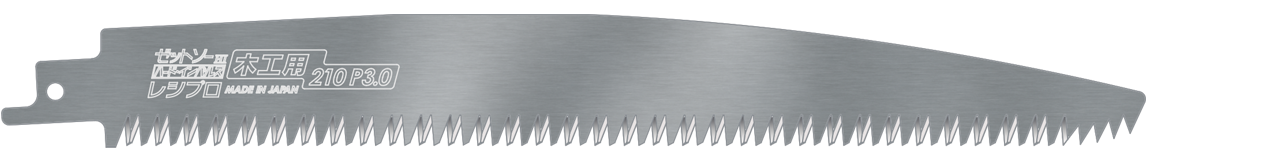

WOOD WORKING 210

- Long & thin saw blade suits for working in a confined working space.

- Sharp & fine saw teeth cut out wood very fast and leaving fine finish.

- Flexible saw blade can trim wood in bent.

- Curved fore-teeth of the blade can scratch to cut out a slot in the center of a board.

SPEC	Blade length	Pitch	TPI	Thickness
(mm)	210	3.00		0.90
(inch)	8.27	0.12	8	0.04
Surface Treatment
Electroless Ni-P plated

WALLBOARD 90

- Special back teeth are designed to easily cut out acute turning curves.

- Sharply ground fore-teeth are designed to easily dig out a slot in the center of board and cut out pocket holes for accommodating switch boxes without pre-drilling pilot holes.

SPEC	Blade length	Pitch	TPI	Thickness
(mm)	90	1.60		0.90
(inch)	3.54	0.06	16	0.04
Surface Treatment
Electroless Ni-P plated

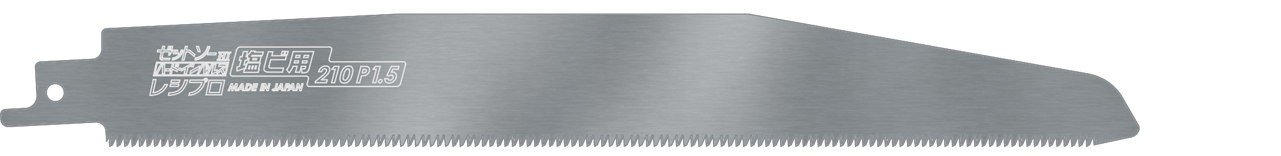

PVC/PE PIPE 210

- Thin & flexible saw blade can be bent to flush cut protruding pipes or bamboos from surface level.

- Triple-beveled sharp teeth reduce attacking force to prevent pipes or bamboos from tearing out, and enhance sawing efficiencies.

- Negative rake angles of teeth are to be ground for more forgiveness to prevent excessive vibrations during the strokes.

SPEC	Blade length	Pitch	TPI	Thickness
(mm)	210	1.50		0.60
(inch)	8.27	0.06	17	0.02
Surface Treatment
Electroless Ni-P plated

How to use the reciprocating saw

To start sawing, rest the shoe of the machine against the work, and slowly press the trigger, to prevent the blade chattering on the surface of the work and kickback of the blade.

Sawing with full strokes by moving the saw body backwards and forwards can effectively remove saw dust and therefore cut wood much more smoothly.

Caution

Please carefully read the reciprocating saw instruction manuals before using the saw.
Please wear gloves and safety goggles throughout the whole sawing operation.
Please disconnect the reciprocating saw from the power supply before changing blades.
