Z-Saw Features
|
| |
| 1.High quality materials |
|
|
The blades of all Z-Saws are made from polished cold rolled high carbon steel strips which we source from prestigious manufacturers in the international market under strict quality control. The steel strips are as hard as HV 540 to 580 with 0.8 -0.9 % of carbon content, widely considered to be the best material for high quality saw blades featuring superb flexibility and durability. |
 |
|
| 2.Perfectly ground teeth |
|
|
The teeth of Z-Saw blades are ground using our self-developed automatic tooth grinding system
using CBN grinding wheels. Even the smallest distortion will be automatically
detected and carefully corrected. Through this process, the blades can
be ground to perfectly parallel edges, ensuring that the teeth bite into
the workpiece completely straight. This is almost impossible to achieve
with hand-filed teeth. |
 |
|
| 3.Custom tooth patterns |
|
Z-Saw makes saw blades with several different basic tooth patterns (e.g. rip/cross/universal) each of which is applied to different saw blades with subtle variations depending on the use of each individual saw. |
|
|
| 4.Sturdy hardened teeth |
|
|
All the teeth of Z-Saw branded blades are hardened through the “Hard Impulse” treatment to increase the degree of hardness to the level of HV800-950
(64.0 - 68.2 HRC), which is the maximum hardness which can be achieved
on steel. Implementing this treatment on the tips of the saw teeth means
that they are able to stay sharp much longer than conventional counterparts
while the core of the blade remains both flexible and tough to prevent
bending or buckling during use. |
 |
|
| 5.Economy |
|
Z-Saws are economical because all blades are interchangeable, and available at a much lower price than the cost of tooth re-sharpening. Furthermore, the quality of the interchangeable blades is much higher than conventional hand forged saws with built in handles. It is widely accepted that buying interchangeable blades saves money, and keeping interchangeable blades in stock avoids wasting working time. |
|
  |
|
| 6.Ergonomic handles |
|
･ |

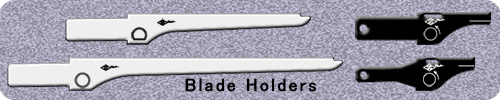

Hook-Fit handles are designed for simple blade attachment and have various lengths of blade
holder, according to blade style and size, to maintain stiffness and straightness
during use. |
 |
|
･ |
Screw-Fit handles are designed for comfortable and balanced grip with a simple and safe blade locking system. |
|
･ |
Pin-Fit handles are designed for safe storage and easy portability with our innovative
angle adjustability. |
|
